Data logger
ESS3 R2

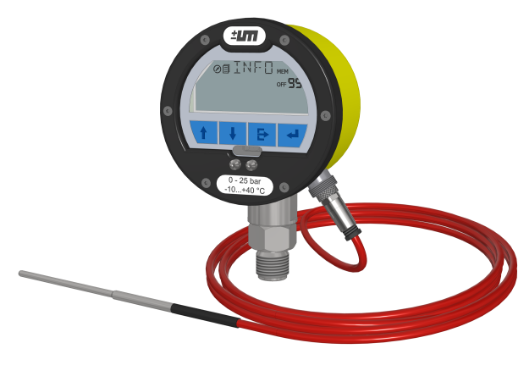

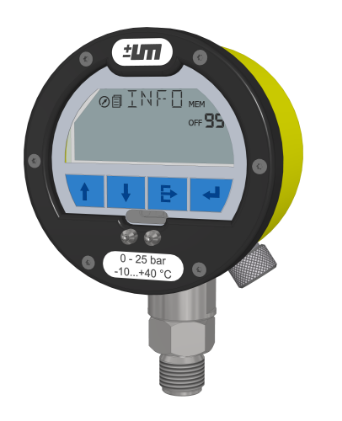

Data logger with a radial sensor
and additional temperature sensor
The ESS3 R2 series devices are used for leak testing in pipeline construction. In addition to pressure, the pipeline temperature is also recorded.
The device automatically calculates the temperature-compensated test pressure and compensates for temperature-related pressure fluctuations
– this makes the results significantly more meaningful than pure pressure measurements.
Measurement parameters
- Relative pressure and temperature
- Absolute pressure and temperature
- Differential pressure and temperature
-
Extremely robust for field use
(Ex-approval + IP68)
- Self-sufficient long-term operation (battery + memory)
-
Contactless data readout
(IrDA)
Typical applications
The ESS3 R2 is particularly suitable for:
Leak testing for gas supply according to G469 B3 and C3
Leak testing for water supply according to W400-2
Leak testing for industrial process engineering
Sensor
The sensor’s accuracy and resolution determine the validity of the test results. Particular emphasis was placed on high stability of the pressure readings under fluctuating ambient temperature conditions.
Stainless-steel-encapsulated piezoresistive sensor with high long-term stability, suitable for liquid and gaseous media, resistant to aggressive media
High resolution of measured values (typically 1 mbar at a 25 bar measuring range); multiple measuring ranges possible with one sensor
The influence of ambient temperature on the pressure readings was eliminated by fully automatic temperature compensation of the pressure measuring cell
High measuring rates due to high natural resonance frequency
High overpressure safety and high burst pressure
Special versions, e.g., for O2 measurement
Sensibly graduated fixed as well as user-definable measuring ranges and various accuracy classes up to +- 0.05% of FSD (full scale deflection)
Temperature sensors suitable as rod probes or for use in thermowells
Technical Data
| Application | Tightness Testing in Accordance with DVGW G469, W400-2 and TÜV Requirements |
| Sensor Connections | One radial sensor connection (M30) for connecting a pressure or temperature sensor |
| Explosion Protection Class | Ex II 2G Ex ib IIC T4 Gb |
| Protection Classes, Housing | Depending on the sensor: IP67 for gauge pressure, IP68 for absolute and differential pressure as well as temperature; W × H × D [mm]: 108 × 162 × 80; Weight [kg]: 1.2 |
| Pressure Sensor Measurement Ranges | Gauge Pressure: 0 … 100/250 mbar and 0 … 1/2.5/10/25/100 bar; Differential Pressure: 0 … 100 mbar, 0 … 1/10 bar; Additional measuring ranges available on request |
| Temperature Sensor Measurement Ranges | -10 °C … +40 °C and -30 °C … +150 °C |
| Measurement Interval | 125 ms … 6 h |
| Initial Measurement Accuracy | Depending on the sensor (up to 0.05% FS) |
| Resolution | Up to 0.004% FS |
| Communication Interfaces | IrDA; Display; Keypad |
| Operating Data | Battery operation up to 8 years |
| Display Information | Current Value; Maximum and Minimum Value as well as Differential Value; Memory Usage and Battery Status |
| Settings | Time and Date; Upper and Lower Alarm Threshold; Averaging (2 … 600 values); Resolution; Measurement Location Name (29 characters); Storage Method (rolling/static) |
| Operation | Via menu using keypad; Via TfsWin III software using IrDA interface cable |
| Data Storage | 250,000 date-time values / 512 kB |
| Typical Range | 2 years (through data compression) |
| Software | TfsWin III for parameterization, visualization, analysis and archiving of data |
